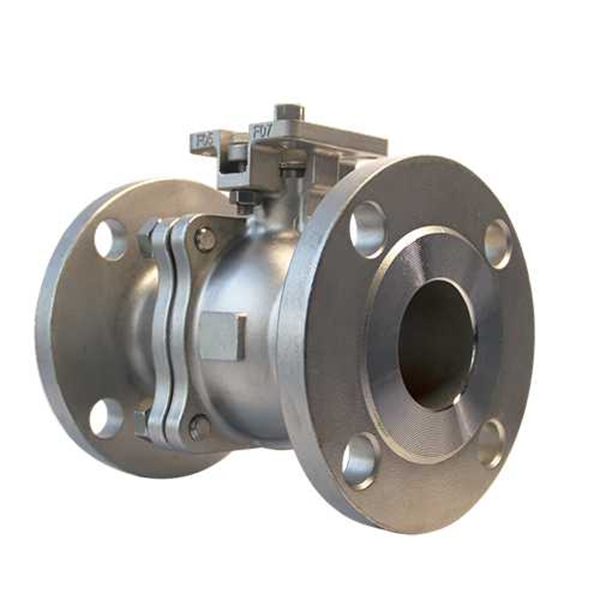

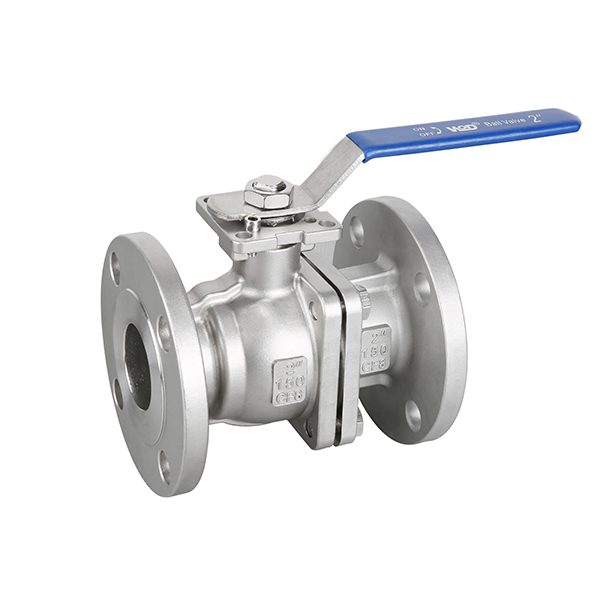

ANSI cast steel soft seal floating ball valve

Short Description:

JLPV cast steel soft seat floating ball valve are manufactured to the latest edition of API 6D and tested to API 6D. Passed API 607 fire test standard for soft seal valves. All valves from JLPV are strictly 100%tested before shipment to guarantee zero leakage.

Product Detail

Product Tags

Product Detail

As the name implies, a floating ball valve uses a ball as the structure to shut the pipe's cross section and stop fluid flow. The major characteristic of a floating ball valve is that because the ball lacks a structure to hold it, it floats in the fluid and is held in position by the valve seats. The floating ball valve's ball is unrestricted by any other part, so when the valve is closed and the medium is pressed against one end of the valve (upstream), the ball can produce a certain displacement and press tightly against the sealing surface of the outlet end (downstream) of the valve, creating an outlet seal. Because there are so many different types of valves available, it's critical to comprehend their variations in order to choose the one that best suits the application at hand. Floating ball valves are a type of ball valve where the closing system is suspended. As a result, they have a very simple design and operation and can be used for applications where speed in opening or closing the flow, ease in changing the flow's direction, or ease of installation are crucial. Other designs should be taken into account if there are more difficult requirements present, such as a higher resilience to severe environments, high temperatures, and high pressures. Consider the type of sealing as another crucial factor influencing the decision in those situations, and perhaps use a two- or three-piece design. The choosing process shouldn't provide any major challenges if the aforementioned recommendations are followed. To avoid repurchases or additional expenditures related to replacing valves that did not meet the needs of the application, it is advised to consult NTGD valve, a reputable producer of floating ball valves, whenever in doubt.

Design standard

1.Basic Design API 6D & API 608 & ANSI/ASME B 16.34
2.Shell Wall Thickness API 6D
3.Face to Face Dimension ANSI/ASME B16.10
4.Flange End Dimension ANSI/ASME B16.5
5.Butt-Weld End Dimension ANSI/ASME B16.25
6.Inspection & Testing API 6D


1.Size: 1/2” to 10”  DN15 to DN250
2.Pressure: Class 150lb to 300lb
3.Material: Carbon steel, stainless steel and other special materials.NACE MR 0175 anti-sulfur and anti-corrosion metal materials.
4.Temperature: -46℃-200℃

JLPV valves can be equipped with gear operator, pneumatic actuators, Hydraulic actuators, Electric actuators,bypasses,locking devices,chainwheels,extended stems and many others are available to meet the customers’ requirements.
