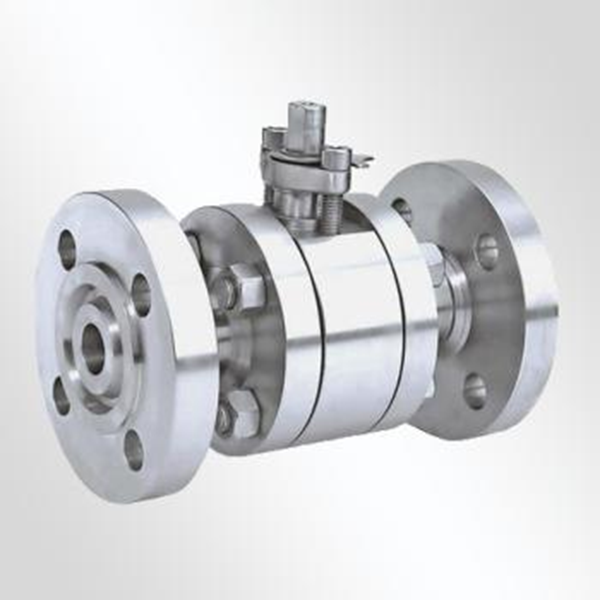

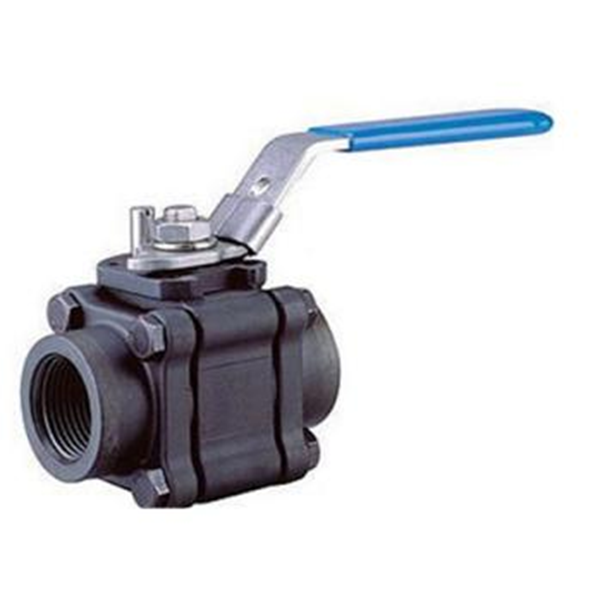

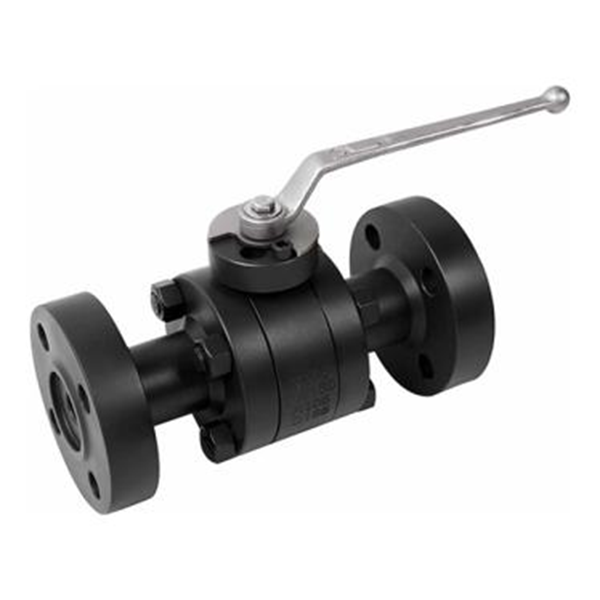

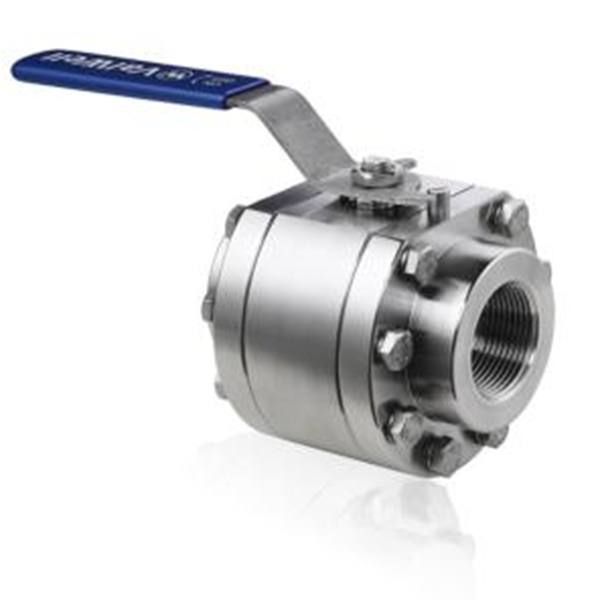

Forged Steel Three-Piece Ball Valve

Short Description:

JLPV Forged steel valves are manufactured to the latest edition of API602, BS5352 and ASME B16.34. And tested to API 598.All Forged steel valves from JLPV VALVE are strictly 100%tested before shipment to guarantee zero leakage.

Product Detail

Product Tags

Product Detail

Although forged valves work well in high-temperature, high-pressure situations, they can't be produced in a wide variety of shapes and sizes.JLPV Forged valves are used extensively in boiler, petroleum, chemical, metallurgy, energy systems, and critical power-industry applications. These valves include forged-steel gate, globe, and check valves as well as forged ball valves.

A ball valve is a type of quarter-turn valve that controls flow through it using a hollow, perforated ball that pivots. When the ball's hole is parallel to the flow, the valve is open; when the valve handle pivots the ball 90 degrees, the valve is closed. It is simple to visually confirm the status of the valve because the handle sits flat in line with the flow when it is open and perpendicular to it when it is closed.

Application range: metallurgy, electric power, real estate, healthcare, pharmaceuticals, municipal engineering, and other industries.

The company has closely adhered to the criteria of the international quality assurance system to manage production ever since it was founded. Our persistent business strategy is "customer first, quality first." We perform a good job on each pipe fitting, closely control each process, and inspect our goods in accordance with industry standards before they leave the plant to make sure they are properly qualified. I look forward to helping out with your project!

Design standard

The range of JLPV Forged steel valves design is as follows:
1.Size: 1/2” to 2”   DN15 to DN1200
2.Pressure: Class 800lb to 2500lb  PN100-PN420
3.Material: Carbon steel and stainless steel and other special materials.
NACE MR 0175 anti-sulfur and anti-corrosion metal materials
4.Connection ends:
Socket weld end to ASME B16.11
Screwed end (NPT,BS[) to ANSI/ASME B 1.20.1
Butt weld end (BW) to ASME B 16.25
Flanged end (RF, FF, RTJ) to ASME B 16.5
5.Temperature: -29℃ to 580 ℃
JLPV valves can be equipped with gear operator, pneumatic actuators, Hydraulic actuators, Electric actuators, bypasses, locking devices, chainwheels, extended stems and many others are available to meet the customers’ requirements.
